Speedometer Disc for Mercury Smartcraft SC 1000

SKU: 10225
Category: Mercury
Manufacturers: HTD

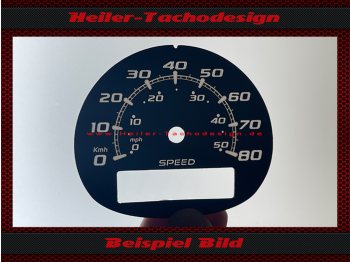

speedometer disk for Mercury Smartcraft SC 1000
👁️ Clear model-specific design
📏 Compare the version and dimensions with the installed component
🏷️ Reproduction by Heiler-Tachodesign – not an original manufacturer part

Carbon Look
Color of the Speedometer Disk
Color Numbers of the Speedometer Disk
Color Scale of the Speedometer Disk
Buy lettering eg. Own Name (not copyright protected)
Lettering Text Speedometer (not copyright protected): Lettering Text Speedometer (not copyright protected)
Lettering Color
Logo Buy, for example. own company logo (no copyright protected) Vector file must be delivered!
Kmh or Mph

from

69,99 €

incl. 19% VAT , plus

Delivery time: 2 - 5 weeks (DE - int. shipments may differ)

Description
Scan
Reviews

⚠️ Display Notice

As there are numerous different scale variants, the original gauge face shown is provided solely for reference during the ordering process and is not part of the offer.
It shows the original design of the respective manufacturer and does not originate from Heiler-Tachodesign.
The example images featuring our gauge faces show exclusively items manufactured by us.
Brand logos are generally not printed.

🛠️✨ Production Details

Our approx. 0.7 mm flat gauge faces are made – similar to many original parts – from UV- and heat-resistant polycarbonate.
The multi-layer direct printing process enables precise and durable scales.
Like the original, the gauge faces are not light-opaque; only numbers and scales are illuminated, while symbols become visible only when the lighting is active.
The gauge faces are ready for installation and replace the original parts without adhesive.

🔄📏 MPH → Km/h Conversion

This gauge face for US/UK models has been professionally rescaled from an original MPH layout to kilometres per hour (Km/h).
The conversion ensures a correct and precise Km/h display.
This gauge face is exclusively suitable for conversion from MPH to Km/h and is not compatible with vehicles originally equipped with a Km/h speedometer.
Original Km/h scale versions can be found in the “Kmh” category.
Please compare the scaling of your existing MPH gauge face with the original gauge face shown above.
Only a complete match allows for an accurate fit.
If you are unsure, please send us a photo of the gauge before purchasing, along with the model, type designation, year of manufacture, and gauge diameter.

🧩🔧 Installation Notes

As we only receive removed gauge faces and not the complete instrument, we provide no installation instructions.
For replacement, the housing and needles must be removed; this work should be carried out by a qualified specialist workshop.
Please note that we are a print and manufacturing company and focus exclusively on the printing and production of gauge faces.
Disassembly, modification, or technical conversion of the speedometer is not performed by us.
We accept no liability for installation errors, damage, or malfunctions.

🔐📘 Copyright & Trademark Notice

All brand logos and trademarks of vehicle manufacturers are protected by copyright.
They are not printed or used by us.
All designs, descriptions, and images by Heiler-Tachodesign are subject to our own copyright.
They may not be used without written permission.
Copyright infringements will be pursued consistently.

📝🎨 Custom Production & Returns

Our products are not stock items.
Each gauge face is manufactured individually according to the selected options.
Modified versions (changes to numbers, scales, or colours) are produced at the customer’s own risk.
We assume that the instrument has been technically prepared correctly.
We accept no liability for insufficient or missing functionality.
For coloured illumination, we recommend original colour tones or neutral white lighting for optimal readability.

If your original speedometer is not shown, we need the original templates.
It’s essential to get all original templates from you. (disc, rev meter, temperature display, fuel indicator etc.)
!!Attention!! Only send the disc/s not the whole speedometer. If it’s a MPH-speedometer, we will rescale them in km/h.
The easiest way is to send us the discs by post. You can find the address in the company Information.

You can also scan the original discs and send them to us by mail. Scan it with photoshop or the free program i_view32.
If the disc is too large for your scanner, then please scan the disc once from the left and once from the right. We reassemble the disc on the computer. Please also scan the back.
Please scan everything with 300 DPI and save it as JEPG. (with photoshop save as PSD)
Don’t change anything in adjustment (i_view32). This is the only way we will get the original size of the speedometer and it’s discs. For all other programs, the size is displayed incorrectly.

Average item rating

All reviews:

How do reviews work?

Total entries: 1

Perfecte Arbeit
Meine Tachoscheibe wurde erstklassig hergestellt.
Besser wie das original.

Manfred H , 13.12.2023 Verified purchase Voucher received
