Speedometer Glass for Gehäuse Ø100 mm Smiths Instrumente zB MG Triumph

SKU: 8388
Category: Smiths
Manufacturers:

🛠️ High-quality, laser-cut flat acrylic or real glass dial.
🎨 Clean edges and precise manufacturing; minor irregularities in real glass do not affect fit or functionality.
📐 Ideal as an exact replacement, with each piece individually produced according to original measurements.

Material

from

7,99 €

incl. 19% VAT , plus

Delivery time: 2 - 5 weeks (DE - int. shipments may differ)

Description
Scan
Reviews

⚠️ Display Notice

Because there are numerous different scale versions, the displayed original glass gauge face serves solely as orientation during the ordering process and is not part of the offer.
It shows the original design of the respective manufacturer and does not originate from Heiler-Tachodesign.
The example images with our gauge faces are the only items produced by us.
Brand logos are not printed under any circumstances.

🛠️✨ Production Details

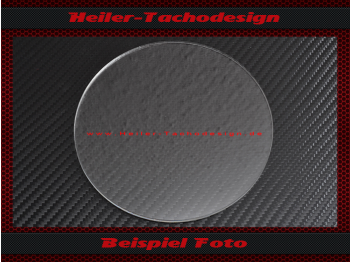

You are purchasing a high-quality, laser-cut flat, non-curved acrylic glass dial, or — if offered — a hand-cut real glass version.
During manual processing of real glass, small chips or slightly irregular edges may occasionally occur. These do not affect the fit or functionality of the product.

🧩🔧 Installation Notes

📐 Installation Information
Since we only receive the dimensions of the dial and not the complete instrument, we cannot provide an installation manual.

⚙️ Replacement Notice
To replace the dial, the instrument must be opened.
We recommend having this work carried out by a qualified specialist workshop, as we cannot assume liability for any potential damage.

🖨️ Please note that we are a printing and manufacturing company only, focusing exclusively on the production of gauge faces.
We do not perform disassembly, modification, or technical conversion of the speedometer.
We assume no liability for installation errors, damage, or malfunctions.

🔐📘 Copyright & Trademark Information

All manufacturer logos and brand wordmarks are protected by copyright.
They are not printed or used by us.
All designs, descriptions and images by Heiler-Tachodesign are protected by our own copyright.
They may not be used without written permission.
Legal violations will be prosecuted consistently.

📝🎨 Custom Orders & Returns

Our products are not stock items.
Each dial is individually produced according to the selected options.
Modified versions (changes to numbers, scales, or colours) are made at the customer's own risk.
We assume that the instrument is technically prepared accordingly.
We do not accept liability for insufficient or non-functional performance.
For coloured illumination, we recommend original colour tones or a neutral white light for optimal readability.

If your original speedometer disc is not shown, we need the templates.
We need all original discs (speedometer temp tank, etc.) as a template.
!!!!!!! Danger !!!!!! Only the discs do not send the whole speedometer !!!!!!!!!!!!
If it is MPH speedometer, we will rescale them to Kmh and you will get the new discs in Kmh.
The easiest way is to send us the slices by mail.
See address below in the imprint
Or you can scan the original discs and send them to us by e-mail.
Scan your disk / s, using Adobe Photoshop or the free program i_view32
When removing the discs, see if the speedometer,
has extra strips with symbols or heating discs that should be scanned with the same,
Should your speedometer disc be too big for your scanner,
then scan the disc once from the left and once from the right.
We build the disk on the computer, together again.
Please scan everything at 300 DPI and then save as JEPG (Save as PSD with Photoshop).
In the settings do not change anything (i_view32). That's necessary so we get the original size.
For other programs, the size is displayed incorrectly.
